Insulated System

System Details

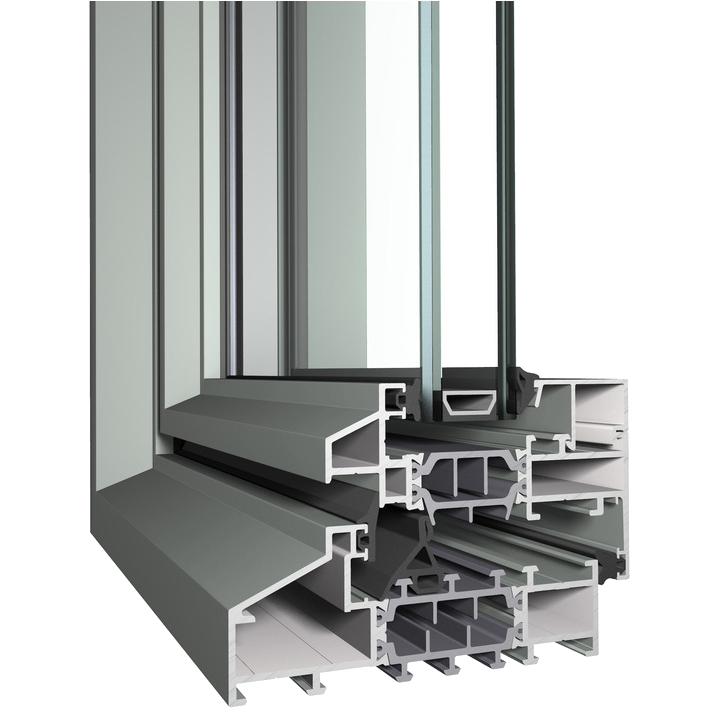

Reynaers SL 38

SLIM LINE 38

SlimLine 38 is a highly insulated system for inward and outward opening windows and doors, which combines elegance and comfort, with a unique design. This special slender steel look is the perfect solution for modern architecture and renovation of steel-framed windows, respecting the original design but offering a thermally improved solution.

The SL 38 system is available in 3 different minimalistic design variants, Classic, Ferro and Cubic, to perfectly match the architectural aspect of the building. The windows and doors can be provided with double and triple glazing without losing the ultra-slim look. In combination with its superior insulation capabilities, the system provides the perfect harmony between durable material, clean design and demanding architectural challenges.

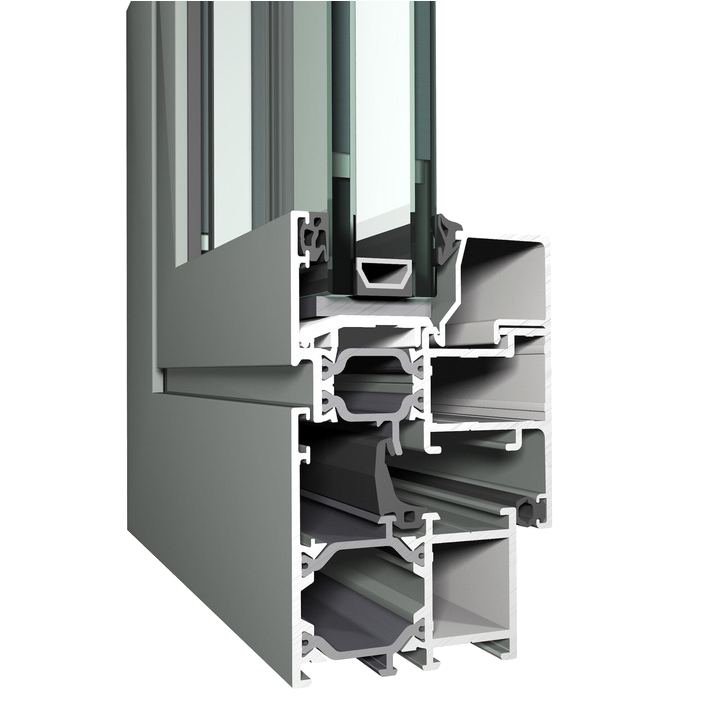

Reynaers ES 50

ECO SYSTEM 50 WINDOW

Simply smart

Eco System® 50 is a well-insulated system for inward and outward opening windows, that combines aesthetic design and energy efficiency with a moderate price. The system’s limited built-in depth allows its application in many constructions, even with reduced wall thicknesses.
Design wise, ES 50 offers, next to the functional design frames, special block profiles resembling wooden frames. The use of invisible fittings results in an even more elegant look, since hinges are no longer in sight. In addition, ES 50 can comply with burglar resistance class 2, offering a safe and secure solution both for residential constructions and utility buildings.

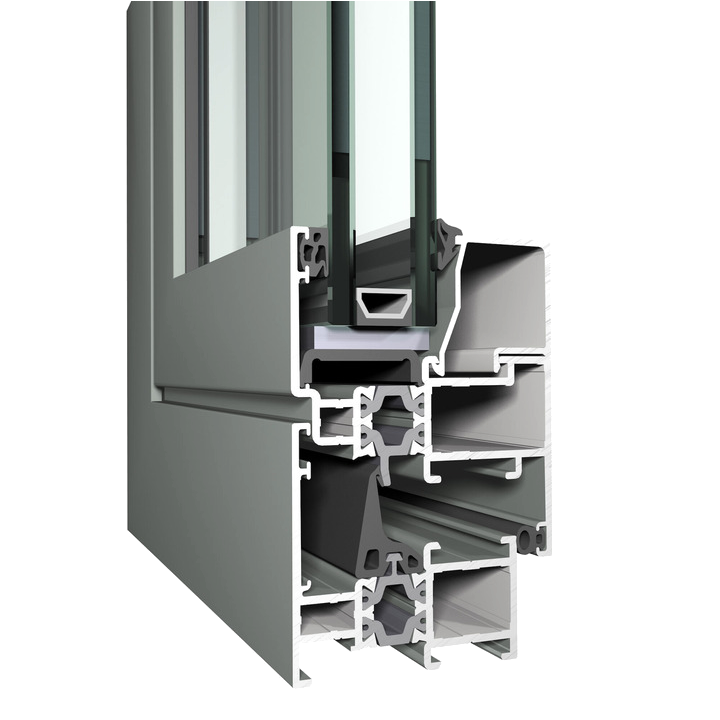

Reynaers CS 59

INSULATION CONCEPT

Concept for insulation

Concept System® 59 offers a complete range of insulated profiles for the construction of elegant and moderately priced aluminium windows.
The system’s limited built-in depth allows for application in many constructions, even with reduced wall thicknesses. In addition, CS 59 can comply with the burglar resistance class 2, offering a safe and secure solution.

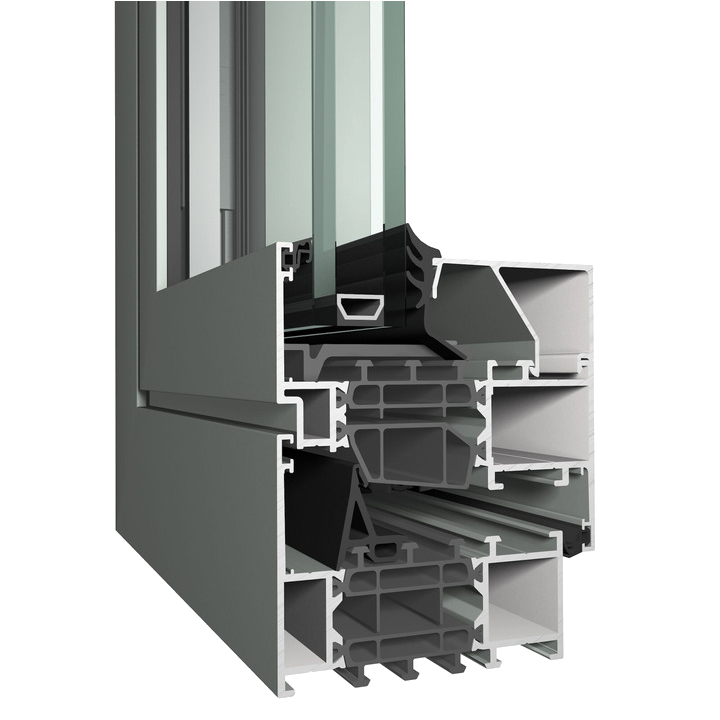

Reynaers Masterline 8

Crafted for masters

MasterLine 8 is a unique window system that combines countless design opportunities with first in class performance in terms of thermal insulation, air-and water-tightness, and production speed. The system offers a wide design range and ultimate performance regarding thermal insulation and air- and water tightness. This new generation of innovative window solutions mirrors the current architectural trend towards maximising daylight while offering ultimate insulation levels.

MasterLine 8 features 3 different levels of insulation for high insulated, low energy and even passive houses. These different levels of insulation are achieved by the integration of new and clever materials. The unique concept makes it possible to combine an extensive range of window opening types, design variants, and different levels of thermal insulation. The design variants, each with their own distinct look and feel, make MasterLine 8 suitable for any architectural style.

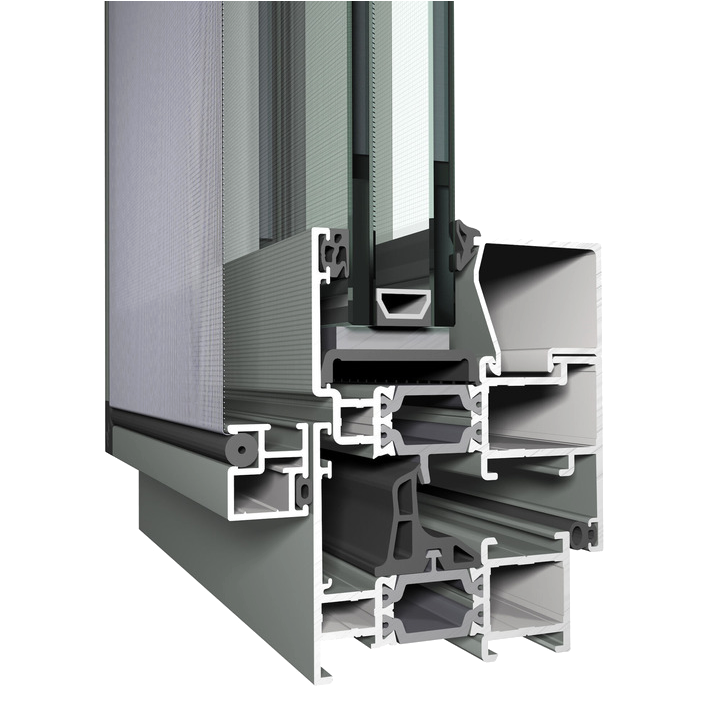

Reynaers CS 68

CONCEPT SYSTEM  68

Universal solution

Concept System® 68 is a universal window system, with good performances regarding stability, thermal insulation and security.
The window system offers a range of solutions for inward and outward opening windows and is compatible with the Ventalis ventilation units. In addition, CS68 windows can comply with burglar resistance classes 2 and 3, offering an ultimate level of security.

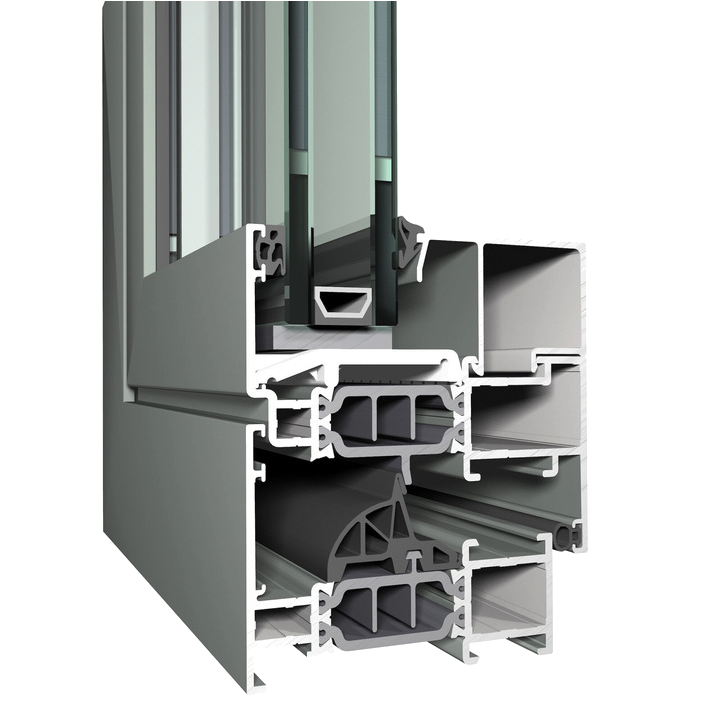

Reynaers CS 77

OPTIMUM SAFETY AND COMFORT

Optimised safety and comfort

Concept System® 77 is a high insulating window system that meets elevated requirements regarding thermal insulation, stability and security. Anticipating on the thermal requirements, the insulation value (Uf) for the HI+ variant of this system goes down to 1.7 W/m²K for a standard opening window. The unique concept of the system makes it perfectly suitable for triple glazing and CS 77 even achieved the Swiss Minergie® component label.

The system’s performance regarding acoustics, water- and air tightness, but also for specific applications like Bullet - and Fire Resistance, meets the most severe European standards. Moreover, CS 77 windows are available in different burglar resistance levels (class 2 & 3) making it an extremely secure system.
To match the different building types, the system is available in a variety of aesthetic styles: Functional, Softline and Hidden Vent.

The CS 77 system includes the most complete range of solutions for all types of inward and outward opening windows. Ultimate combination possibilities, also with CS 77 doors, CP 130 sliding systems and Ventalis® ventilation units, makes CS 77 extremely suitable for all types of building concepts, even with the highest safety requirements.

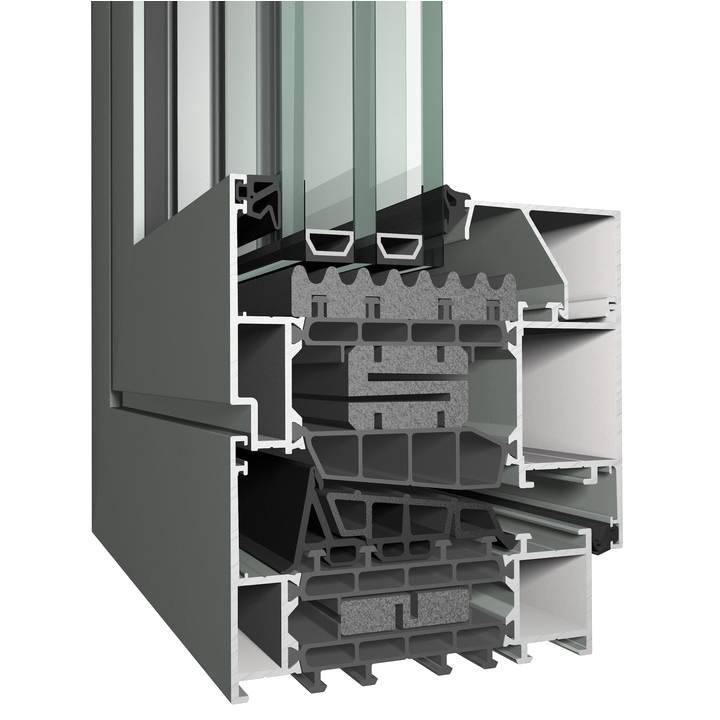

Reynaers Masterline 10

MASTERLINE 10 WINDOW

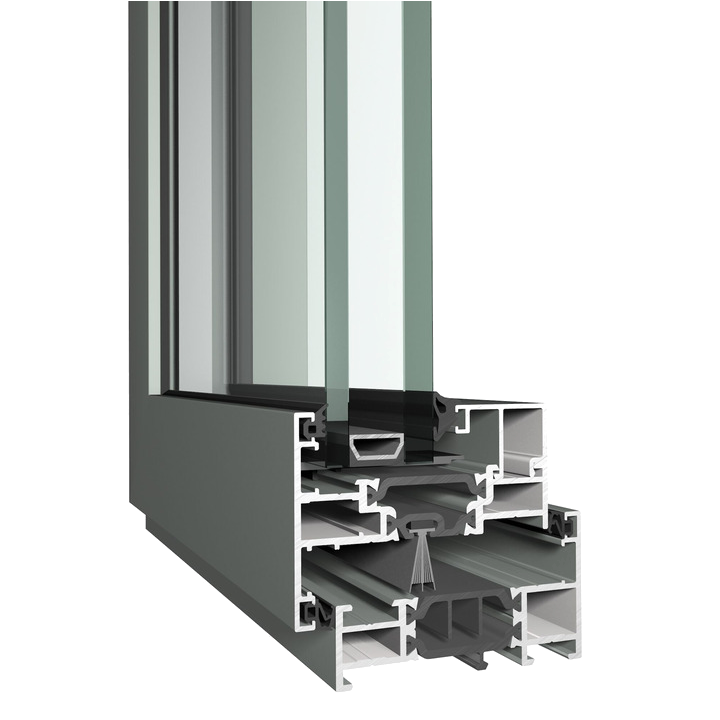

Reynaers Slimline 68

SLIMLINE 68 WINDOW
